OT Lights - LED

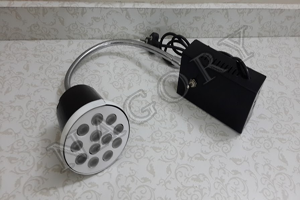

LED Examination Light

General Description:

LED Light for all kind of examinations. It is best suited for Gynae examinations and minor surgical processes. Perfect light for perfect examination.

Salient Features:

  • Pedestal type with adjustable height at examination table level (optional)
  • Heavy base with wheels (locking facility)
  • Can be mounted on wall
  • Can be mounted on I.V. stand

Technical Specification:

  • Color temperature - 4500 K
  • Spot diameter 15 cm (range + / - 10%)
  • Service life 50000 Hrs
  • 3 W / 6 W LED Examination Lamp
  • Intensity (0.5 m) 18,000 / 35,000 Lux
  • 2 years replacement warranty
Available Model: Wall or I.V. Stand Mounting
blog3

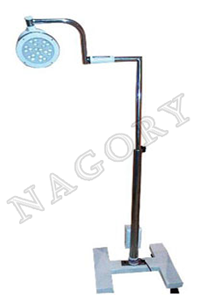

LED OT Light: SIMS POL 4

General Description:

POL 4 is 21 LED Light for Minor operation purpose and for use in area like general O.T, Laparoscopy etc. It is best suited for minor surgeries, Labour rooms, OPD, Emergency etc.

Salient Features:

  • Cold white light
  • No black spot in the centre
  • Superior lamp life of 50000 Hrs
  • Electronic transformer ensures maintenance free performance
  • Microprocessor controller based circuit
  • Adjustable (moving) lamp head

Technical Specification:

  • 21 LED Dome
  • Luminous power - 30,000 Lux
  • Color temperature - 5000 K
  • Iluminance field - 15 cm
  • Color rendering index Ra - 95 %
  • Electronic transformer
  • Supply voltage - 230 V / 50 Hz AC
  • Power consumption - 20 W approx
  • 2 years replacement warranty
Availability: Pedestal

blog3

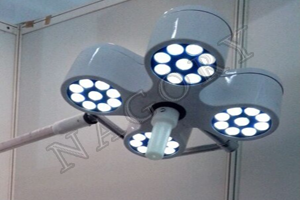

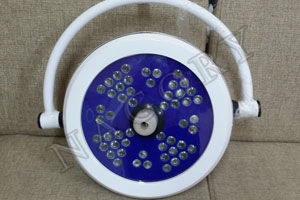

LED OT Light: SIMS PRIMA

General Description:

PRIMA is 36 / 52 LED Light for surgical operation purpose and for use in area like general O.T. It is best suited for diagnosis and surgical use and offers exceptional performance advantage with state of the art technology. A perfect solution for OT procedure, with ease and value for money.

Salient Features:

  • Cold white light
  • No black spot in the centre
  • Superior lamp life of 50000 Hrs
  • Electronic transformer ensures maintenance free performance
  • Microprocessor controller based circuit
  • Removable autoclavable handle
Technical Specification:

  • 36 or 52 LED Dome
  • Luminous power - 80,000 Lux / mt per dome ( + / -10%)
  • Color temperature - 5000 K
  • Luminance field - 15 cm to 25 cm per dome
  • Color rendering index Ra - 95 %
  • Electronic transformer
  • Intensity control through remote (optional)
  • Supply voltage - 230 V / 50 Hz AC
  • Lamp housing (fibre body)
  • Power consumption - 30 / 45 W approx
  • 2 years replacement warranty
Available Models: Both Pedestal and Ceiling

blog3 blog3

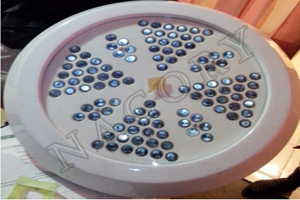

LED OT Light: SIMS PRIMA 2

General Description

PRIMA 2 is 108 LED OT Light for general O.T. purpose. It is best suited for all kinds of diagnostics and surgical procedure. Thanks to an innovative illumination systems based on LED technology (Light Emitting Diodes) which offers exceptional performance advantage with state of the art technology. Perfect light for any kind of surgical intervention.

Salient Features:

  • Cold white light
  • No black spot in the centre
  • Superior lamp life of 50000 Hrs
  • Electronic transformer ensures maintenance free performance
  • Microprocessor controller based circuit
  • Removable & autoclavable handle
Technical Specification:

  • 108 LED Dome
  • Luminous power - 1,20,000 Lux / mt per dome (+ / -10%)
  • Color temperature - 5000 K
  • Luminance field - 15 cm to 30 cm
  • Color rendering index Ra - 96 %
  • Intensity control through remote (optional)
  • Supply Voltage - 230 V / 50 Hz AC
  • Lamp housing (fiber body)
  • Power consumption - 90 W approx
  • 2 years replacement warranty
Available Models: Both Pedestal and Ceiling

blog3

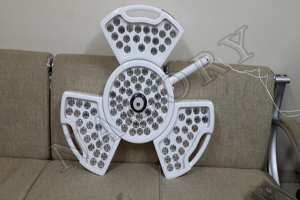

LED OT Light: SIMS PRIMA 3

General Description:

PRIMA 3 is 108 LED OT Light for all kinds of operation theatre and best suited for all kinds of diagnosis and surgical process. An innovative illumination system for any kind of surgical procedure.

Salient Features:

  • Cold white light
  • No black spot in the centre
  • Superior lamp life of 50000 Hrs
  • Electronic transformer ensures maintenance free performance
  • Microprocessor controller based circuit
  • Removable & autoclavable handle

Technical Specification:

  • 108 LED Dome
  • Luminous power - 1,30,000 Lux in single dome (+ / -10%)
  • Color temp - 4000 to 6000 K
  • Luminance field - 15 cm to 25 cm
  • Color rendering index - 65 to 98 %
  • Dome size 80 cm (29 inch)
  • Heat resistant fibre housing
  • Class of protection - 1 CE
  • Compatible with laminar flow
  • Supply voltage - 230 V / 50 Hz AC
  • Full intensity controller
  • REMOTE CONTROLED***
  • Works on just 12 V supply
  • Power consumption - 100 W approx
  • 2 years replacement warranty
Available Models: Ceiling

blog3

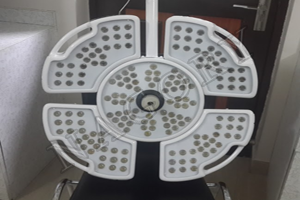

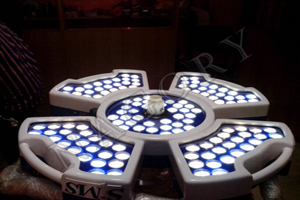

LED OT Light: SIMS PRIMA 4

General Description:

PRIMA 4 is 132 LED OT Light for all kinds of operation theatre and best suited for all kinds of diagnosis and surgical process. An innovative illumination system for any kind of surgical procedure.

Salient Features:

  • Cold white light
  • No black spot in the centre
  • Superior lamp life of 50000 Hrs
  • Electronic transformer ensures maintenance free performance
  • Microprocessor controller based circuit
  • Removable & autoclavable handle

Technical Specification:

  • Luminous power - 1,50,000 Lux in single dome (+ / -10%)
  • Color temp 4000 to 6000 K
  • Luminance field - 15 cm to 25 cm
  • Color rendering index - 65 TO 98 %
  • Dome size 80 cm (29 inch)
  • Heat resistant fibre housing
  • Class of protection - 1 CE
  • Compatible with laminar flow
  • Supply voltage - 230 V / 50 Hz AC
  • Full intensity controller
  • REMOTE CONTROLED***
  • Works on just 12 V supply
  • Power consumption - 100 W approx
  • 2 years replacement warranty
Available Models: Ceiling
